Resilient seated gate valve gate valve with bypass F4 gate valve

Our resilient sealed gate valve, the body and wedge are made of ductile cast iron, the materials can meet the relevant requirements of GJS500-7 and GJS400-15, the body is sprayed with epoxy powder coating for anti-corrosion treatment, the coating thickness is above 250 microns, the valve is covered with high-quality natural rubber, the epoxy powder and the rubber have WRAS certificate. This product is widely used in the UK and Hong Kong markets. We have a professional and experienced service team, and our cooperation will take your career to a higher level.

Category：

Resilient Seated Gate Valve

E-mail:

sales@successmach.com

Inquiry
Recommend

Description

Technical specification:

1.Design and manufacture to EN1074 & BS5163.

Design Pressure

D

PN10-PN16

Design Size

DN100-DN1200

Shell Test Mpa

T

1.5xDesign Pressure

Seat Test Mpa

1.1xDesign Pressure

Work Temp

T

-10~~80℃

Medium

M

Water

2.Face to face: DIN3202 & BS5163

3.Flange and drilling to EN1092-2.

4.Inspection & test to EN12266-1

5. Internal & external epoxy coating

above 250 microns.

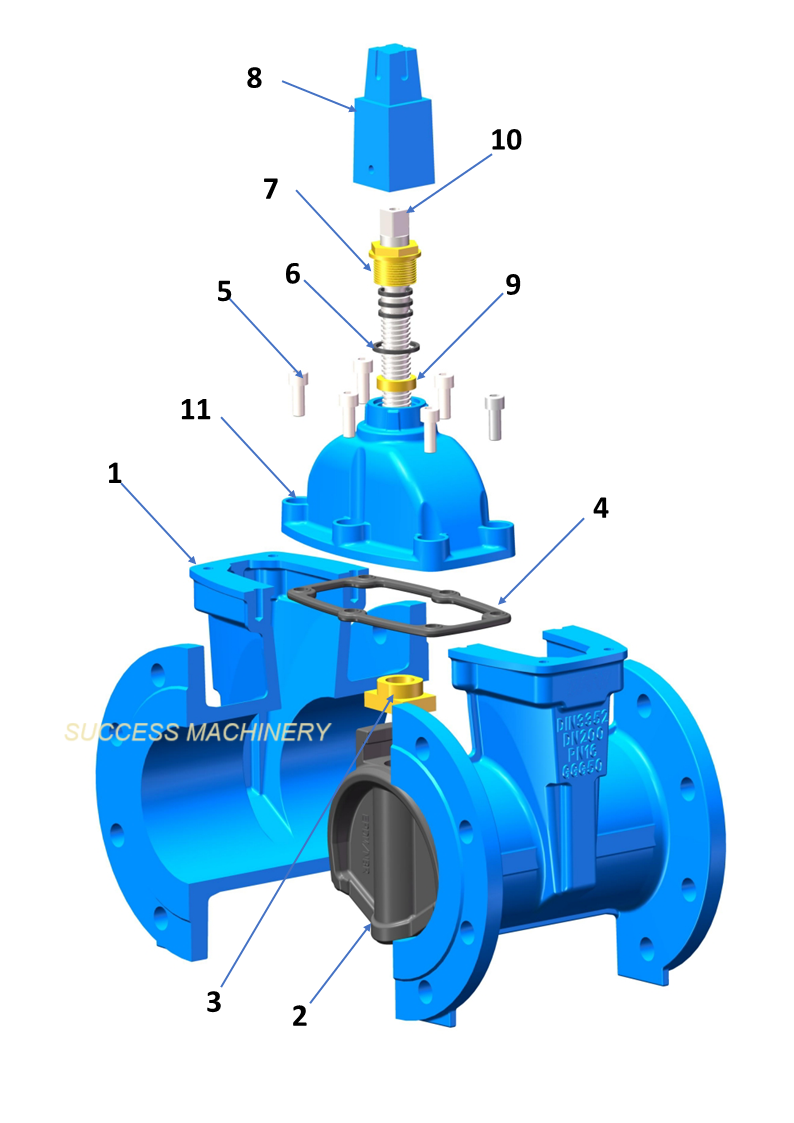

Materials of parts:

SN

Name

Material

1

Body

GJS500-7

2

Wedge

GJS500-7+EPDM

3

Stem Nut

Bronze

4

Gasket

EPDM

5

Screw

A2-70

6

O ring

EPDM

7

Bushing

Bronze

8

Cap of stem

GJS500-7

9

Gland

Bronze

10

Stem

420

11

Bonnet

A2-70











































Dimensions of the Resilient Seated Gate Valve DN100-1200:

DN PN  L（F4) L(BS5163) D PCD D1 B f n-d
50 10 150 178 165 125 99 19 3 4-Φ19(M16)
16 165 125 99 19 3 4-Φ19(M16)
80 10 180 203 200 160 132 19 3 8-Φ19(M16)
16 200 160 132 19 3 8-Φ19(M16)
100 10 190 229 220 180 156 19 3 8-Φ19(M16)
16 220 180 156 19 3 8-Φ19(M16)
150 10 210 267 285 240 211 19 3 8-Φ23(M20)
16 285 240 211 19 3 8-Φ23(M20)
200 10 230 292 340 295 266 20 3 8-Φ23(M20)
16 340 295 266 20 3 12-Φ23(M20)
250 10 250 330 400 350 319 22 3 12-Φ23(M20)
16 400 355 319 22 3 12-Φ28(M24)
300 10 270 356 455 400 370 24.5 4 12-Φ23(M20)
16 455 410 370 24.5 4 12-Φ28(M24)
350 10 290 381 505 460 429 24.5 4 16-Φ23(M20)
16 520 470 429 26.5 4 16-Φ28(M24)
400 10 310 406 565 515 480 24.5 4 16-Φ28(M24)
16 580 525 480 28 4 16-Φ31(M27)
450 10 330 432 615 565 530 25.5 4 20-Φ28(M24)
16 640 585 548 30 4 20-Φ31(M27)
500 10 350 457 670 620 582 26.5 4 20-Φ28(M24)
16 715 650 609 31.5 4 20-Φ34(M30)
600 10 390 508 780 725 682 30 5 20-Φ31(M27)
16 840 770 720 36 5 20-Φ37(M33)
700 10 430 610 895 840 794 32.5 5 24-Φ31(M27)
16 910 840 794 39.5 5 24-Φ37(M33)
800 10 470 660 1015 950 901 35 5 24-Φ34(M30)
16 1025 950 901 43 5 24-Φ41(M36)
900 10 510 711 1115 1050 1001 37.5 5 28-Φ34(M30)
16 1125 1050 1001 46.5 5 28-Φ41(M36)
1000 10 550 811 1230 1160 1112 40 5 28-Φ37(M33)
16 1255 1170 1112 50 5 28-Φ44(M39)
1000 10 550 811 1230 1160 1112 40 5 28-Φ37(M33)
16 1255 1170 1112 50 5 28-Φ44(M39)
1200 10 630 1015 1455 1380 1328 45 5 32-Φ41(M36)
16 1485 1390 1328 57 5 32-Φ50(M45)



For more information about other kinds of  butterfly valve , plesae send E-mail to sales@successmache.com
