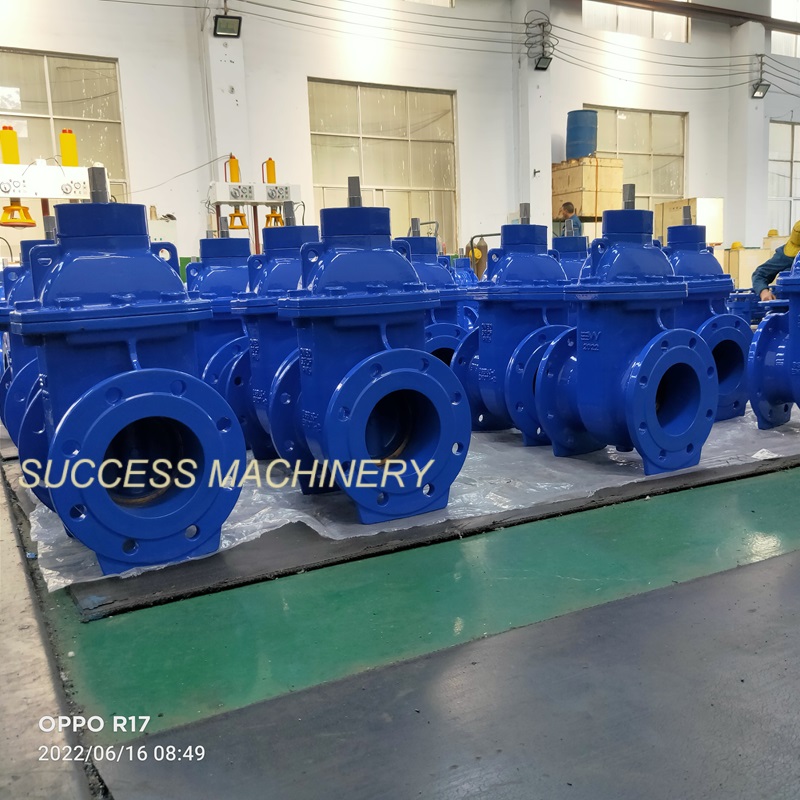

Metal Seated Gate Valve Gate Valve with Bypass Ceramic Wedge Gate Valve

The metal seated gate valve have the following four characteristics: 1, the body and wedge seat ring is made of aluminum bronze, wear-resistant, long service life 2, the valve shaft strength is high, can withstand BS5163 destructive torque test; 3, double-sided sealing and zero leakage 4, small torque force, easy to open. We have a professional and experienced service team, and our cooperation will take your career to a higher level.

Category：

Metal Seated Gate Valve

E-mail:

sales@successmach.com

Inquiry
Recommend

Description

Technical specification:

1.Design and manufacture to EN1074 & BS5163.

Design Pressure

D

PN10-PN16

Design Size

DN100-DN1200

Shell Test Mpa

T

1.5xDesign Pressure

Seat Test Mpa

1.1xDesign Pressure

Work Temperature

T

-10~~80℃

Medium

M

Water

2.Face to face: DIN3202 & BS5163

3.Flange and drilling to EN1092-2.

4.Inspection & test to EN12266-1

5. Internal & external epoxy coating

above 250 microns.







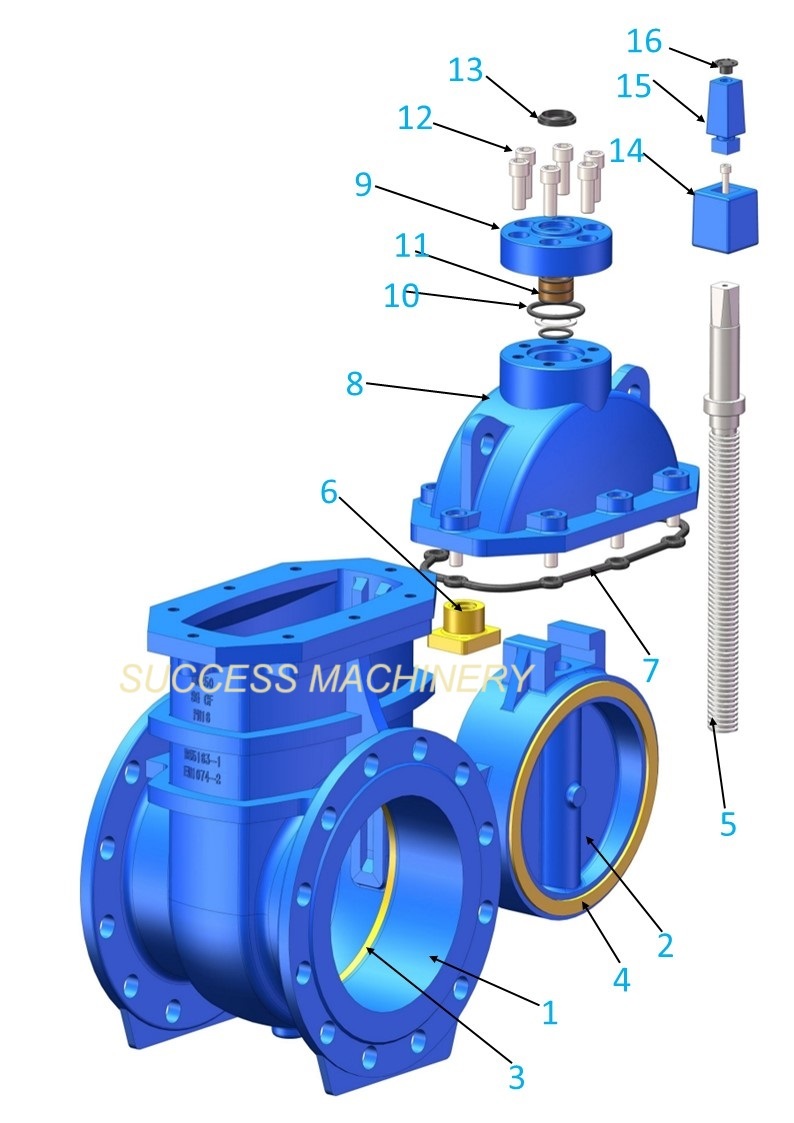

Materials of parts:

Dimensions of the Check Valve DN50-1200:

DN PN  L（F4) L(BS5163) D PCD D1 B f n-d
50 10 150 178 165 125 99 19 3 4-Φ19(M16)
16 165 125 99 19 3 4-Φ19(M16)
80 10 180 203 200 160 132 19 3 8-Φ19(M16)
16 200 160 132 19 3 8-Φ19(M16)
100 10 190 229 220 180 156 19 3 8-Φ19(M16)
16 220 180 156 19 3 8-Φ19(M16)
150 10 210 267 285 240 211 19 3 8-Φ23(M20)
16 285 240 211 19 3 8-Φ23(M20)
200 10 230 292 340 295 266 20 3 8-Φ23(M20)
16 340 295 266 20 3 12-Φ23(M20)
250 10 250 330 400 350 319 22 3 12-Φ23(M20)
16 400 355 319 22 3 12-Φ28(M24)
300 10 270 356 455 400 370 24.5 4 12-Φ23(M20)
16 455 410 370 24.5 4 12-Φ28(M24)
350 10 290 381 505 460 429 24.5 4 16-Φ23(M20)
16 520 470 429 26.5 4 16-Φ28(M24)
400 10 310 406 565 515 480 24.5 4 16-Φ28(M24)
16 580 525 480 28 4 16-Φ31(M27)
450 10 330 432 615 565 530 25.5 4 20-Φ28(M24)
16 640 585 548 30 4 20-Φ31(M27)
500 10 350 457 670 620 582 26.5 4 20-Φ28(M24)
16 715 650 609 31.5 4 20-Φ34(M30)
600 10 390 508 780 725 682 30 5 20-Φ31(M27)
16 840 770 720 36 5 20-Φ37(M33)
700 10 430 610 895 840 794 32.5 5 24-Φ31(M27)
16 910 840 794 39.5 5 24-Φ37(M33)
800 10 470 660 1015 950 901 35 5 24-Φ34(M30)
16 1025 950 901 43 5 24-Φ41(M36)
900 10 510 711 1115 1050 1001 37.5 5 28-Φ34(M30)
16 1125 1050 1001 46.5 5 28-Φ41(M36)
1000 10 550 811 1230 1160 1112 40 5 28-Φ37(M33)
16 1255 1170 1112 50 5 28-Φ44(M39)
1000 10 550 811 1230 1160 1112 40 5 28-Φ37(M33)
16 1255 1170 1112 50 5 28-Φ44(M39)
1200 10 630 1015 1455 1380 1328 45 5 32-Φ41(M36)
16 1485 1390 1328 57 5 32-Φ50(M45)



The metal seated gate valve have the following four characteristics:
1、the body and wedge seat ring is made of aluminum bronze, wear-resistant, long service life
2、the valve shaft strength is high, can withstand BS5163 destructive torque test;
3、double-sided sealing and zero leakage
4、small torque force, easy to open.



For more information about other kinds of  butterfly valve , plesae send E-mail to sales@successmache.com
