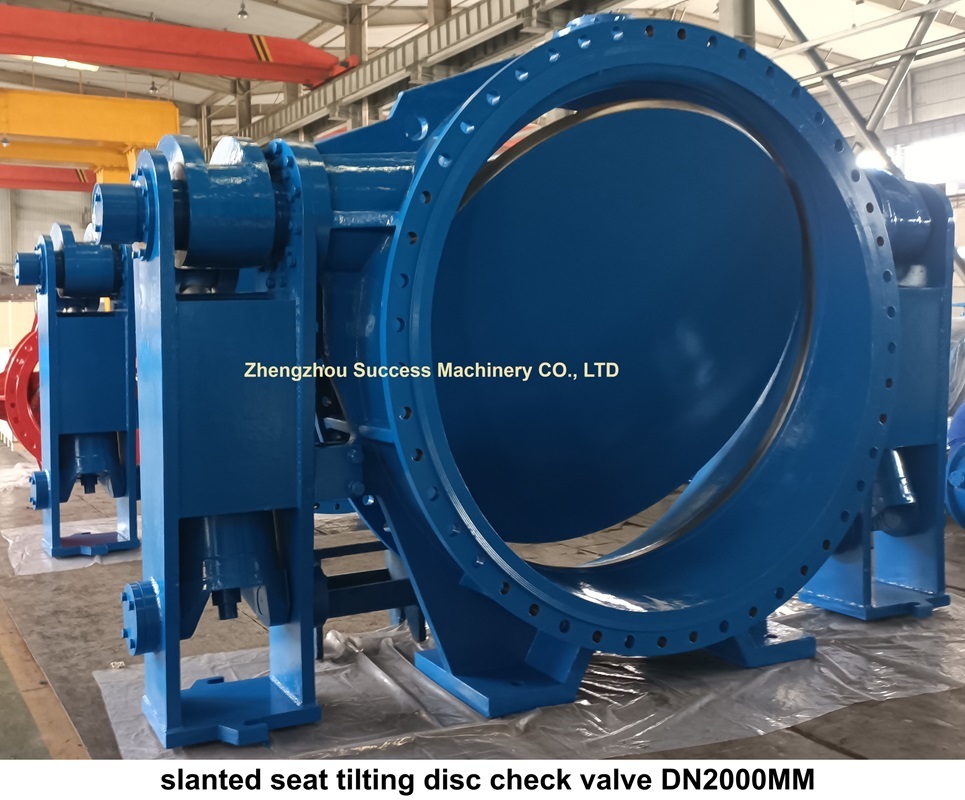

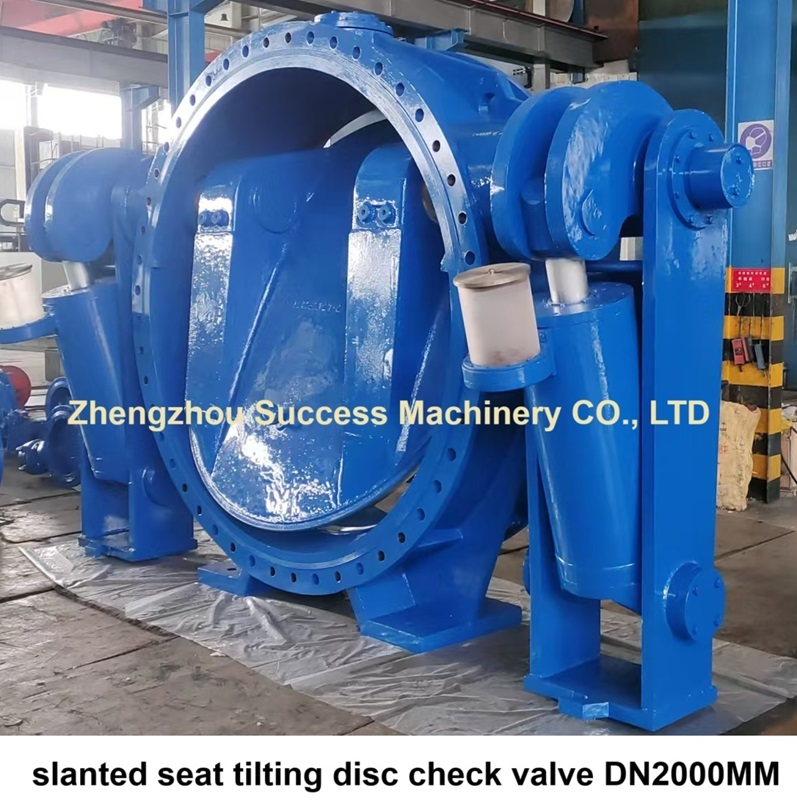

Slantd seat tilting disc check valve Butterfly type check valve Butterfly type non-slam check valve

1、Valve is designed with slanted seat, slanted angle of 20 degrees, short opening stroke and fast closing; 2、Body seat with stainless steel welding .corrosion resistance, wear resistance； 3、Large eccentric design, fast respond； 4、The valve body is quipped with limit block to ensure the disc will not be over traveled. The limit block is casted on the body integrally to prevent falling off; 5、The disc has built-in counterweight on the farthest part of the disc, fast closing respond. The external weight and counterweight can be removed to save space and avoid dangerous movement; 6、metal to metal or resilent seating option; We have a professional and experienced service team, and our cooperation will take your career to a higher level.

Category：

Slanted Seat Tilting Disc Check Valve

E-mail:

sales@successmach.com

Inquiry

Recommend

Description

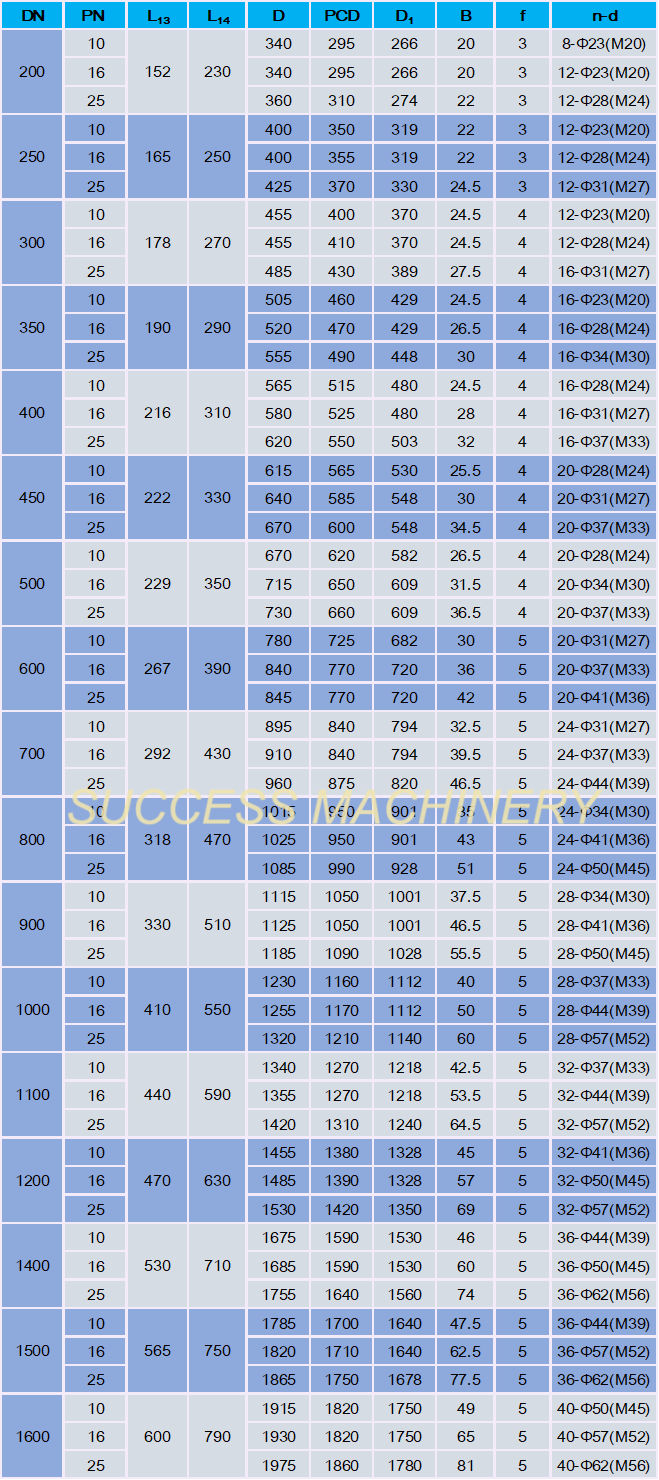

Butterfly Type Check Valve Technical specification:

1、Design and manufacture to EN1074,
2、Face to face: EN558 Series 14
3、Flange and driling to EN1092-2
4、Inspection & test to EN12266 5. Intemal &
extemal FBE above 250 microns

Design Pressure		PN10-PN25
Design Size		DN200MM-1600MM
Shell test Mpa	W	1.5X Design Pressure
Seat test Mpa		1.1X Design Pressure
Work Temp		-10～80℃
Medium		Water

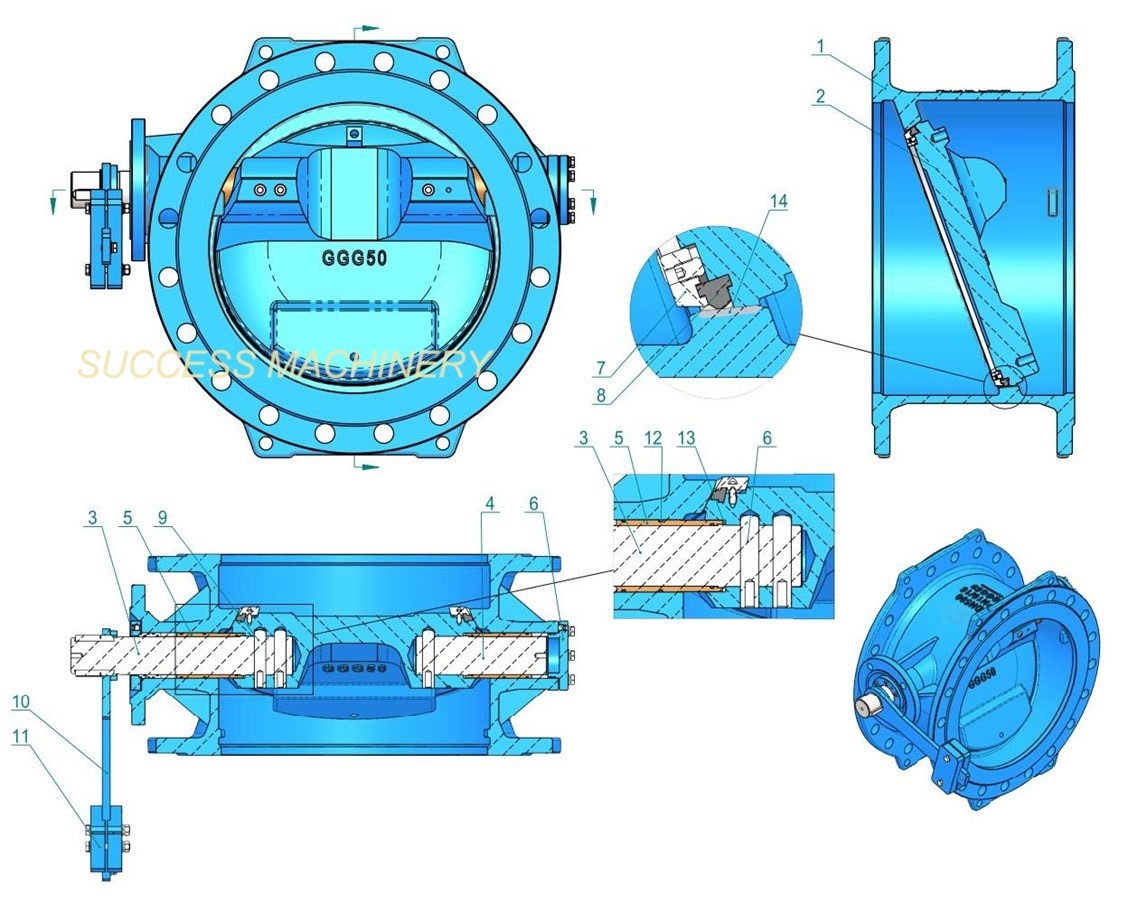

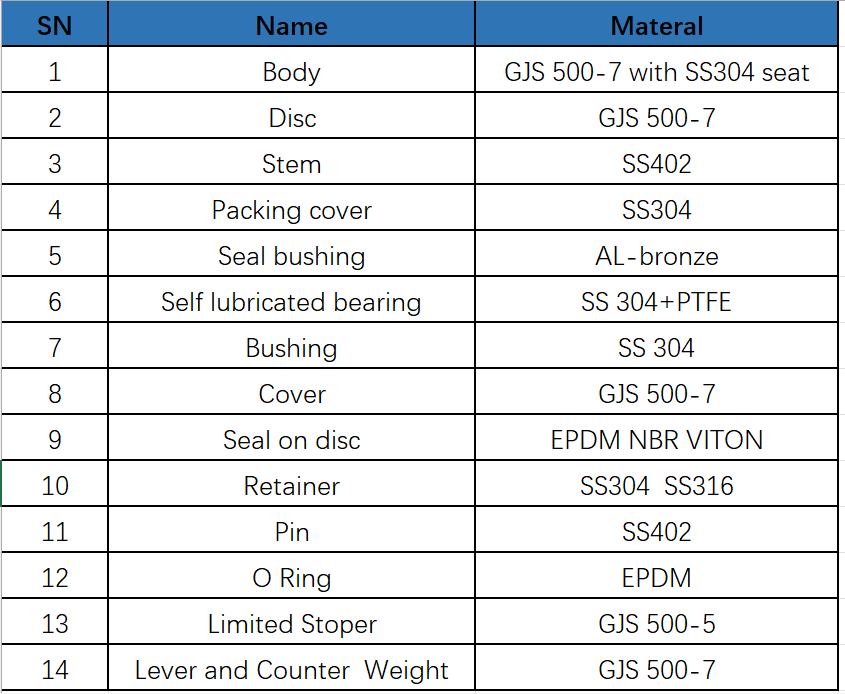

Materials of parts:

SN	Name	Material
1	Body	GJS500-7 with SS304 Seat
2	Disc	GJS500-7
3	Stem	SS420
4	Packing cover	SS 304
5	Seal bushing	AL-bronze
6	Self lubricated bearing	SS 304+PTFE
7	Bushing	SS 304
8	Cover	GJS500-7
9	Seal on disc	EPDM NBR VITON
10	Retainer	SS 304 SS 316
11	Pin	SS 420
12	O Ring	EPDM
13	Limited Stoper	GJS500-5
14	Lever and Counter Weight	GJS500-7
