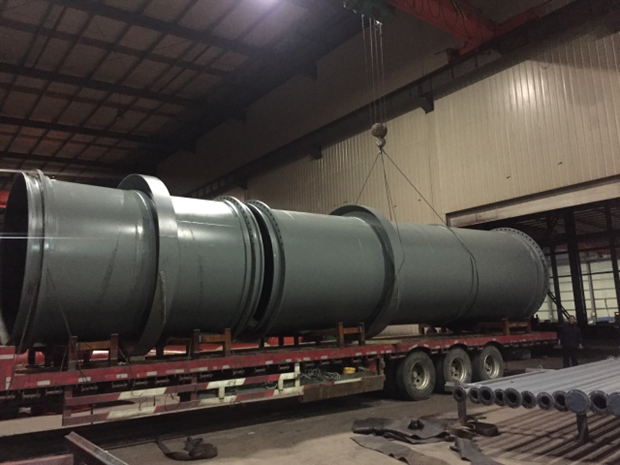

Rubber lined pipe Rubber lined steel joint Rubber lined triple joint Rubber lined cross pipe

There is a wide variety of materials used in the rubber protection industry. The type of rubber protection is specific to each separate application. Rubbers to inhibit abrasion, and corrosion from harsh chemicals include: Naturals, Gum, Neoprene, EPDM, Nitrile, Ebonite, Hypalon, Triflex, MOR and Chlorobutyl. These rubbers come in different thicknesses and durometers (a measure of how hard the rubber is after being cured). Durometer ratings are critical in the rubber lining applications where abrasion and wear is a concern. Advantage of rubber lining: High impact resistance; Good anti-abrasion; Fine anti-corrosion; Adapting to wide range of temperature; Less running resistance can reduce energy consumption; Good steel pipe; Light weight, easy to install, maintain and transport; Recycling and reusing. Using field: Nuclear power Coal power plant Ion exchangers for water treatment plants Ship building Offshore industry Chemical industry Metal industry Mining industry We have a professional and experienced service team, and our cooperation will take your career to a higher level.

Category：

Pipe Fitting

E-mail:

sales@successmach.com

Inquiry

Recommend

Description

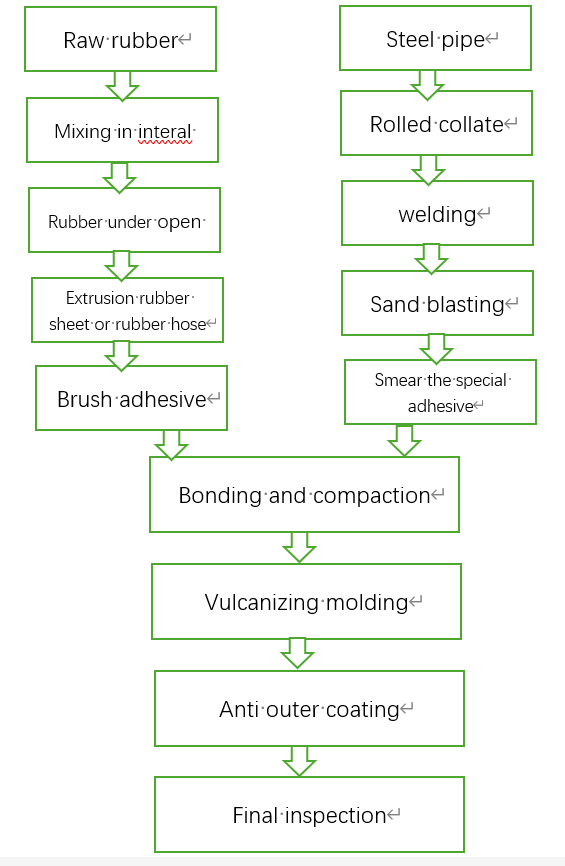

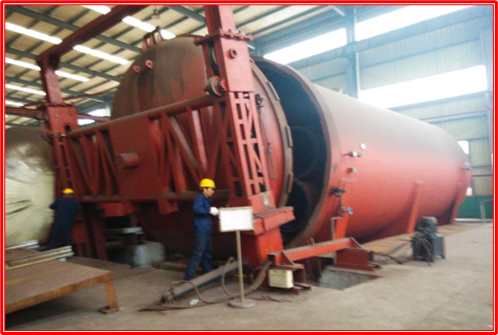

Rubber-lined pipes: These utilise steel pipes as the base structure, lined internally with standard extruded rubber sheets or seamless rubber liners. The lining is bonded to the pipe body through composite bonding and compression, employing either airbag or ball-passing techniques, followed by thermal vulcanisation within a tank.

Four composite materials ：
